Overview of Transparent Glove Box

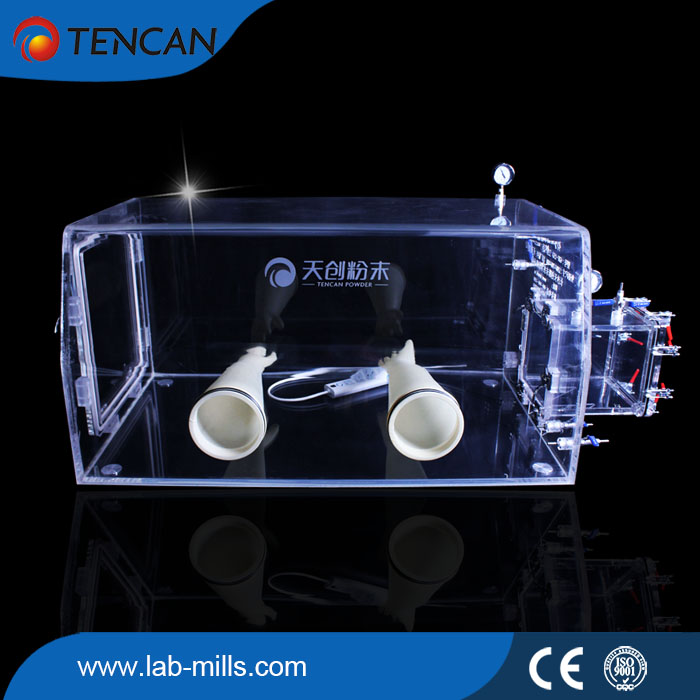

Transparent vacuum glove box is also called Inert gas operation box. In course of scientific experiment, some substances are easy to be oxidized and humidified. That makes reaction of test materials and pre-disposal of samples very difficult and influences experimental process and test result. Acrylic vacuum glove box solves all those problems effectively. Test sample can be input and output safely by the device and you may operate freely, make reaction and testing in anhydrous and anaerobic state in order to ensure experimental operation. It is mainly composed of main box, transit room and side door. If user has special requirement, it can also be customized and designed according to customer needs. There are 2 glove interfaces. In front of the main box, user can clearly view the box inner situation. There are two vacuum ball valves and one vacuum gauge on the right of the main box. And there are also two vacuum ball valves and one vacuum gauge on the transit room. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate the main box from connecting with the outdoor, making material putting in and taking out for lab easily.

Acrylic Vacuum Glove Box Warning

* When it is vacuum state, it is not allowed to opening transit room door and glove interface cover, not allowed to discharge the vacuum glove box to check and repair.

* Power: 220V, 50HZ, 1KW.

* It should be vacuum pump for glove interface first or vacuum pump glove interface together with main box. stop vacuum pump for main box first or stop vacuum pump for main box and glove interface together.

* The accessory to connect with vacuum tube should be fit and sealed tightly. It should not exceed 1 atmosphere when filling in inert gas.
